Kolmakovsky Redoubt Conservation Project (2010-2011)
Blockhouse at Kolmakovsky
Blockhouse and store, ca. 1900. UAMN photo.
In 1841, the Russian-American Company (RAC), seeking to obtain the rich beaver and land otter furs of the Interior of Alaska, set about the construction of Kolmakovsky Redoubt on the middle Kuskokwim River in Western Alaska. As the only redoubt (fort) deep in the Interior, it became the major trading center along the river for the next 25 years. Up to this point, the RAC had concentrated their efforts on obtaining furs along the north Pacific Ocean. In preparation, they conducted a number of exploratory expeditions in the early 19th century and founded several smaller trading stations in the region, finally deciding upon an unoccupied timbered site on the south bank of the Kuskokwim. The first structure built at that location was an 8-sided log blockhouse.» According to local Eskimo oral history, the builders debated how thick to make the wall logs for adequate protection. Eventually, they experimented by firing a musket point-blank into the side of a log. Gauging the depth of the ball’s penetration, they doubled the measurement and determined it adequate – approximately 18 cm. Relations between the RAC and the local Yup’ik Eskimos and Athabascan Indians was amicable and instead of acting as a means of defense, the building served other purposes, including at one time a fish cache and during the gold rush, a jail. The blockhouse stood at the site for over 80 years before being dismantled and shipped to the University of Alaska in Fairbanks in 1929.

The Kolmakovsky Redoubt site has been placed on the Alaska Heritage Resources Survey list of historic properties and archaeological sites. During the summers of 1966-67, Professor Wendell H. Oswalt, UCLA, excavated most of the structural remains at the Kolmakovsky Redoubt site and published a detailed archaeological and historical account about the location (Oswalt, Wendell H., Kolmakovskiy Redoubt.»Institute of Archaeology, University of California, Los Angeles. 1980). The 5,000+ artifacts excavated during those summers were deposited into the archaeological collection at the University of Alaska Museum of the North. The diverse artifacts represent the 88 years of occupation at the site, from the original Russian traders (1841-1866) to the American employees of the Alaska Commercial Company (approx. 1867 – 1917).

Through the Save America's Treasures program, the Museum staff rehoused the 5,000+ artifacts in the archaeology collection and rehabilitated the blockhouse and installed new interpretive signage.


Summer 2006

Pre-Grant Activities

During the summer of 2006, the sod roof was removed from the blockhouse, along with the facia components. The structural stability was questionable and a decision was made to remove those parts that posed a danger to visitors. Since that time, Museum personnel have conducted condition assessments ont he blockhouse and the archaeological collections. In December of 2009, we were awarded $75,000 to undertake the Save America's Treasures project to stabilize and preserve the Kolmakovsky Redoubt collection.


Summer 2010

A New Foundation

A New Foundation

During the summer of 2010, a new foundation and sidewalk were poured for the Kolmakovsky blockhouse, where it will be reassembled in the spring of 2011. This new site will provide shelter for the blockhouse, from the direct wind and sun, which can accelerate the rate of degradation. The site can be easily accessed by people of all abilities, as it is steps away from the Museum's parking lot.


Fall 2010

Examining the Roof

Log preservation specialist, Sandy Jamieson (at left), and assistant Tom Sorensen (on ladder) examine the connections between the log walls and the roof support structure, while Project Director Angela Linn looks over photos of the 1983 reconstruction. The original roof was too badly deteriorated when the rest of the blockhouse was transferred to the University in 1929, but all but one of the horizontal internal supports are original.



Internal roof supports

Roof Supports

The internal roof support structure was blocked with dimensional lumber to hold it in place while the roof was lifted off the house in one piece. Note the difference between the original spruce horizontal spokes and the re-created spruce pole roof and rafters.



Lifting off the Kolmakovsky blockhouse roof

Lifting a Roof

On Friday, November 5, 2010 the Kolmakovsky blockhouse had its roof removed all in one piece. This impressive bit of rigging occurred over several hours, on a beautiful clear day.



Kolmakovsky blockhouse stands without a roof

Topless

The Kolmakovsky blockhouse stands without a roof for the first time since the spring of 1983.



Blockhouse is disassembled

Disassembling the Blockhouse

Log preservation specialists take apart the log walls of the blockhouse, on November 6. The scribed chinkless logs fit together with tenon-end self-locking notches, which unlocked with a few pops of the heel of the hand. Each log was numbered again (the logs were numbered in 1929 as well) to help keep things organized.



The Blockhouse Door

The Blockhouse Door

The doorway that has provided access into the blockhouse for over 169 years. Bars were added in 1983 to prevent visitors from entering the reconstructed building. The original door attaches to the inside.



Rotten log section

Rotten Timber

One log shows the evidence of insect damage, likely the powder post beetle infestation that occurred in 1984. The log preservation specialists will examine each log to determine the structural stability, and in consultation with Museum staff, determine whether to replace the log or stabilize it.



Logs on trailer

Logs Stacking Up

The scribed chinkless logs with tenon-end self-locking notches are stacked onto a trailer for transport to the log preservation specialist's workshop. Over the winter of 2010-11, the preservation team will consult to determine the best course of action for stabilizing the structure while retaining as much of the original building as possible.


Spring 2011

Replacing Rotten Logs

Replacing Rotten Logs

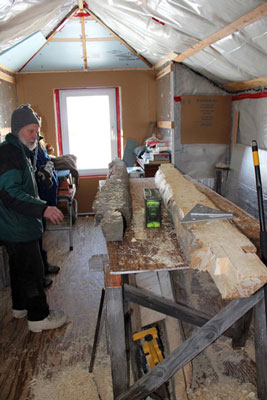

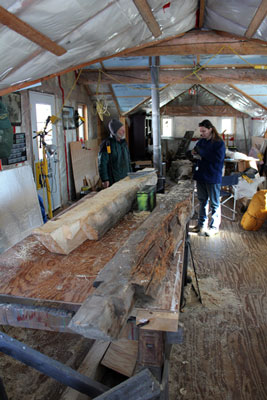

Sandy Jamieson, at his studio, and PI Angela Linn, discuss the progress on the replication of rotten timbers. Jamieson used locally-harvested white spruce to replace sections of the blockhouse that were structurally unstable.



replicating the 170-year-old walls of the blockhouse

The Art of Log Buildings

Sandy Jamieson explains the process for replicating the 170-year-old walls of the blockhouse. This project was his first introduction to the tenon-end self-locking notches used to assemble the 8-sided building. Innovative and efficient, this technique allows a team of 2 men to assemble a building in a matter of hours, once the logs are cut.



A test run

A Test Run

Jamieson and his preservation team replaced a number of logs that were too badly deteriorated and took advantage of a beautiful series of days in mid-April to test-fit their work. This photo shows the tenons at the ends of the logs around the door opening.

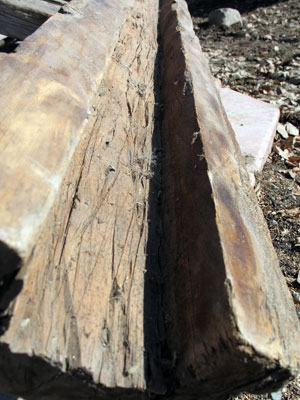

Door frame

Door Frame

The inner workings of the hand-cut dado of the door frame.

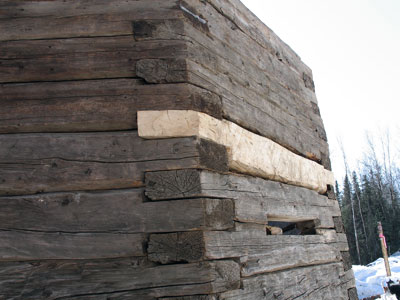

The new log is a perfect fit

Perfect Fit

One example of the replacement logs crafted by Jamieson and his team. Locally-harvested white spruce peeled logs were scribe fit to perfectly match the logs above and below.


The Blockhouse Returns - May 3, 2011


Laying Out the Logs

Step One: Lay Out the Logs



Stacking the logs back into blockhouse

Step Two: Stack the Logs

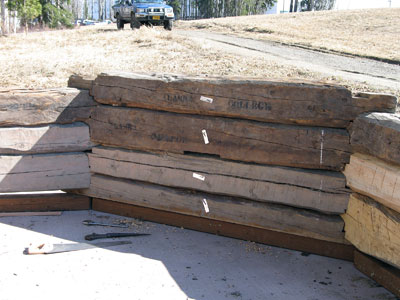

Four rows completed, it is apparent which logs are part of the 1841 building and which were remanufacutured in 1982. Also visible in this photo is a narrow slot that may be an indication of the former floor.



More stacking of the logs

Step Three: Stack More Logs



More logs go on plus the framing of the front door

Step Four: Stack More Logs and Frame the Door



Installing the header

Step Five: Install the Header



Finishing stacking the remaining logs

Step Six: Stack More Logs



Last row of logs called the top round are placed on

Step Seven: Place the Top Round

After approximately five hours of labor between three men, the blockhouse is back together. The top round of logs was too badly deteriorated and our preservation specialists replicated this whole set of eight logs, using the exact notches to receive the roof when we are ready to place that on top.



Blockhouse standing waiting for a roof

Waiting for a Roof

The blockhouse, fully reassembled in its new location behind the Museum. Our next task is to rehabilitate the sod roof, which involves applying a new weatherproof membrane and organic substrate, and a new layer of tundra moss, completing the sod roof. Watch for changes this summer!


The Story of a Roof

Fall 2011

The design of the blockhouse's original roof is currently a matter of debate. There are no photos or drawings that we know of that document what the roof looks like on the inside - the important view that reveals the construction technique. However, since the roof that was constructed in 1982 has been deemed structurally stable, we're keeping it, with a few modifications.

Sandy Jamieson and his assistants worked during the beautiful months of August and September to rehabilitate the spruce pole roof, by getting off the last remnants of polyethylene sheeting, by adding layers of natural canvas, modern landscaping fabric (historically the builders would have used birch bark), constructing "sod stops" of peeled tamarack poles, and finally, locally-harvested tundra sod (complete with blueberries, labrador tea, and all manner of tundra flora).

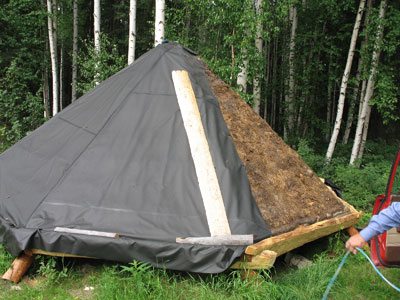

Roof Layer 1-3 - see description to the right for more information
Layer 1: Moss Chinking / Layer 2: (not pictured) Cotton Canvas / Layer 3: Weatherproof Membrane

Roof Layer 4 - see description to the right for more information

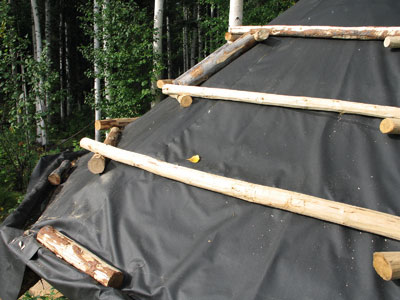

Layer 4: Peeled Tamarack Poles (notice the "gutter" for catching rainwater that will be re-absorbed into the moss)


Setting the Roof in Place

August 28, 2011 was an exciting day of putting the roof back on. A couple of hours of coordinated efforts and the blockhouse roof settled back into place.


Sandy drives the zoom-boom while Tom keeps the roof from spinning out of alignment.

The final adjustments to the roof placement.

September 2011

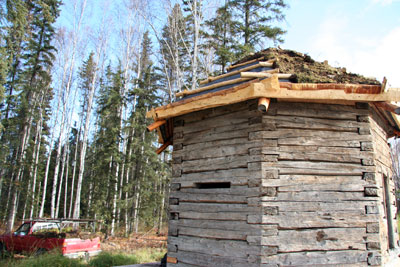

Blockhouse awaiting new moss roof
The blockhouse awaiting its new moss roof, amidst the fall colors of September. Photo by Theresa Bakker.

Tundra moss going on roof
Locally-collected tundra moss was placed on the roof, replicating the historic appearance. Photo by Theresa Bakker.

Sandy and Tom finish placing the 400 lbs of tundra moss on the blockhouse roof.

A Job Well Done
Completed blockhouse
Tom, Sandy, Angela, and Kevin. Photo by Theresa Bakker.

October 2011

On October 14, 2011 the project team gathered to share in the joy of the completed project.


First snow on completed blockhouse
Three days later, the first snow dusted the blockhouse and surrounding campus.

Our Deepest Gratitude...

Save American Treasures logo

As project director, I wish to thank the dozens of volunteers who put their time and energy into helping complete this project. A full list will be posted shortly. In the meantime, I heartily thank our preservation team of Sandy and Tom, their assistants, and Kevin and Theresa at the Museum.

We also thank all those whose past research and hard work helped us make this project a success. My predecessor, Dinah Larsen, who headed the 1982-83 assembly and is responsible for the accumulation of years of documentation in the accession file. Gary Selinger, former UAM special projects manager, who coordinated and oversaw the 2001 move from behind the Museum. Steve Bouta, our Coordinator of Exhibition & Design, for assisting through the years with the outside exhibition process and providing lots of good advice. Dr. Molly Lee, Curator Emeritus of Ethnology and History, who first introduced me to the idea of a Save America's Treasures blockhouse project many years ago. Grant Crosby, with the National Park Service, for his encouragement and advice. My colleagues in the Alaska anthropology and museum professions, for advice and consultation. And to Dr. Wendell Oswalt, for his work at the Redoubt in the 1960s and his research, on which so much of this project relied.

Finally, to the Save America's Treasures program, including IMLS and NPS. They recognized this project as having the national significance to the history of America. We will continue to share this important collection of artifacts and stories with the world.
